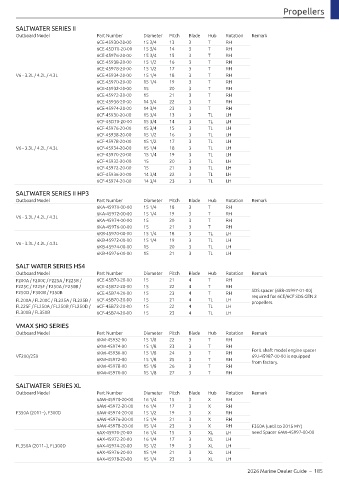

Propellers

SALTWATER SERIES II
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
6CE-45930-20-00 15 3/4 13 3 T RH
6CE-45D70-20-00 15 3/4 14 3 T RH
6CE-45976-20-00 15 3/4 15 3 T RH
6CE-45938-20-00 15 1/2 16 3 T RH
6CE-45978-20-00 15 1/2 17 3 T RH
V6 - 3.3L / 4.2L / 4.3L 6CE-45934-20-00 15 1/4 18 3 T RH
6CE-45970-20-00 15 1/4 19 3 T RH
6CE-45932-20-00 15 20 3 T RH
6CE-45972-20-00 15 21 3 T RH
6CE-45936-20-00 14 3/4 22 3 T RH
6CE-45974-20-00 14 3/4 23 3 T RH
6CF-45930-20-00 15 3/4 13 3 TL LH
6CF-45D70-20-00 15 3/4 14 3 TL LH
6CF-45976-20-00 15 3/4 15 3 TL LH
6CF-45938-20-00 15 1/2 16 3 TL LH
6CF-45978-20-00 15 1/2 17 3 TL LH
V6 - 3.3L / 4.2L / 4.3L 6CF-45934-20-00 15 1/4 18 3 TL LH
6CF-45970-20-00 15 1/4 19 3 TL LH
6CF-45932-20-00 15 20 3 TL LH
6CF-45972-20-00 15 21 3 TL LH
6CF-45936-20-00 14 3/4 22 3 TL LH
6CF-45974-20-00 14 3/4 23 3 TL LH

SALTWATER SERIES II HP3
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
6KA-45970-00-00 15 1/4 18 3 T RH
6KA-45972-00-00 15 1/4 19 3 T RH
V6 - 3.3L / 4.2L / 4.3L
6KA-45974-00-00 15 20 3 T RH
6KA-45976-00-00 15 21 3 T RH
6KB-45970-00-00 15 1/4 18 3 TL LH
6KB-45972-00-00 15 1/4 19 3 TL LH
V6 - 3.3L / 4.2L / 4.3L
6KB-45974-00-00 15 20 3 TL LH
6KB-45976-00-00 15 21 3 TL LH

SALT WATER SERIES HS4
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
F200A / F200C / F225A / F225B / 6CE-45B70-20-00 15 21 4 T RH
F225C / F225F / F250A / F250B / 6CE-45B72-20-00 15 22 4 T RH
F250D / F300B / F350B 6CE-45B74-20-00 15 23 4 T RH SDS spacer (688-45997-01-00)
required for 6CE/6CF SDS GEN 2
FL200A / FL200C / FL225A / FL225B / 6CF-45B70-20-00 15 21 4 TL LH propellers.
FL225F / FL250A / FL250B / FL250D / 6CF-45B72-20-00 15 22 4 TL LH
FL300B / FL350B 6CF-45B74-20-00 15 23 4 TL LH

VMAX SHO SERIES
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
6KW-45932-00 15 1/8 22 3 T RH
6KW-45974-00 15 1/8 23 3 T RH
6KW-45930-00 15 1/8 24 3 T RH For L shaft model engine spacer
VF200/250 69J-45987-00-00 is equipped
6KW-45972-00 15 1/8 25 3 T RH from factory.
6KW-45978-00 15 1/8 26 3 T RH
6KW-45970-00 15 1/8 27 3 T RH

SALTWATER SERIES XL
Outboard Model Part Number Diameter Pitch Blade Hub Rotation Remark
6AW-45970-20-00 16 1/4 15 3 X RH
6AW-45972-20-00 16 1/4 17 3 X RH
F350A (2011--), F300D 6AW-45974-20-00 15 1/2 19 3 X RH
6AW-45976-20-00 15 1/4 21 3 X RH
6AW-45978-20-00 15 1/4 23 3 X RH F350A (until to 2015 MY)
6AX-45970-20-00 16 1/4 15 3 XL LH need Spacer 6AW-45997-00-00
6AX-45972-20-00 16 1/4 17 3 XL LH
FL350A (2011--), FL300D 6AX-45974-20-00 15 1/2 19 3 XL LH
6AX-45976-20-00 15 1/4 21 3 XL LH
6AX-45978-20-00 15 1/4 23 3 XL LH

2026 Marine Dealer Guide – 185
