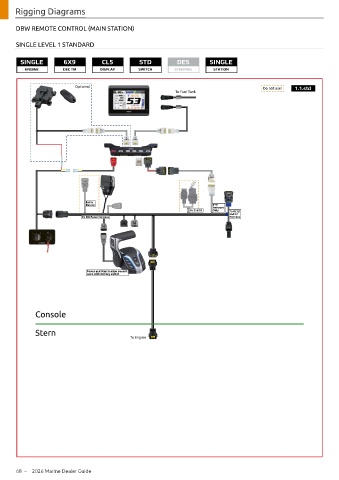

Rigging Diagrams
DBW REMOTE CONTROL (MAIN STATION)
SINGLE LEVEL 1 STANDARD
SINGLE 6X9 CL5 STD DES SINGLE
ENGINE DEC TM DISPLAY SWITCH STEERING STATION
Optional Do not use! 1.1.std
To Fuel Tank
Extra
Device 6Y9
Network
To 2nd ST Only To BCU/
2nd ST
To SW Panel Harness Harness
Power and Start button doesn’t
work with 6x6 key switch
Console
Stern
To Engine
