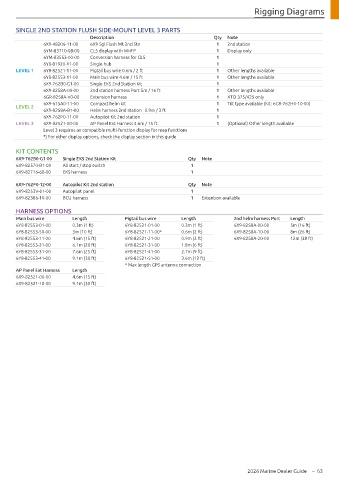

Page 65 - Yamaha Marine Zubehoer 2026

Rigging Diagrams

SINGLE 2ND STATION FLUSH SIDE-MOUNT LEVEL 3 PARTS
Description Qty Note
6X9-48206-11-00 6X9 Sgl Flush Mt 2nd Stn 1 2nd station
6YM-83710-08-00 CL5 display with Wi-Fi* 1 Display only
6YM-83553-00-00 Conversion harness for CL5 1
6Y8-81920-11-00 Single hub 1
LEVEL 1 6Y8-82521-11-00 Pigtail bus wire 0.6m / 2 ft 1 Other lengths available
6Y8-82553-11-00 Main bus wire 4.6m / 15 ft 1 Other lengths available
6X9-762B0-G1-00 Single EKS 2nd Station Kit 1
6X9-8258A-00-00 2nd station harness Port 5m / 16 ft 1 Other lengths available
6GR-8258A-V0-00 Extension harness 1 XTO 375/425 only
6X9-615A0-11-00 Compact helm kit 1 Tilt type available (Kit: 6GR-762H0-10-00)
LEVEL 2
6X9-8258A-B1-00 Helm harness 2nd station 0.9m / 3 ft 1
6X9-762P0-11-00 Autopilot Kit 2nd station 1
LEVEL 3 6X9-82521-00-00 AP Panel Ext Harness 4.6m / 15 ft 1 (Optional) Other length available
Level 3 requires an compatible multi-function display for map functions
*) For other display options, check the display section in this guide

KIT CONTENTS
6X9-762B0-G1-00 Single EKS 2nd Station Kit Qty Note
6X9-82570-B1-00 All start / stop switch 1
6X9-82716-60-00 EKS harness 1

6X9-762P0-12-00 Autopilot Kit 2nd station Qty Note
6X9-8253V-01-00 Autopilot panel 1
6X9-82386-10-00 BCU harness 1 Extention available
HARNESS OPTIONS
Main bus wire Length Pigtail bus wire Length 2nd helm harness Port Length
6Y8-82553-01-00 0.3m (1 ft) 6Y8-82521-01-00 0.3m (1 ft) 6X9-8258A-00-00 5m (16 ft)
6Y8-82553-50-00 3m (10 ft) 6Y8-82521-11-00* 0.6m (2 ft) 6X9-8258A-10-00 8m (26 ft)
6Y8-82553-11-00 4.6m (15 ft) 6Y8-82521-21-00 0.9m (3 ft) 6X9-8258A-20-00 12m (38 ft)
6Y8-82553-21-00 6.1m (20 ft) 6Y8-82521-31-00 1.8m (6 ft)
6Y8-82553-31-00 7.6m (25 ft) 6Y8-82521-41-00 2.7m (9 ft)
6Y8-82553-41-00 9.1m (30 ft) 6Y8-82521-51-00 3.6m (12 ft)
* Max length GPS antenna connection
AP Panel Ext Harness Length
6X9-82521-00-00 4.6m (15 ft)
6X9-82521-10-00 9.1m (30 ft)
