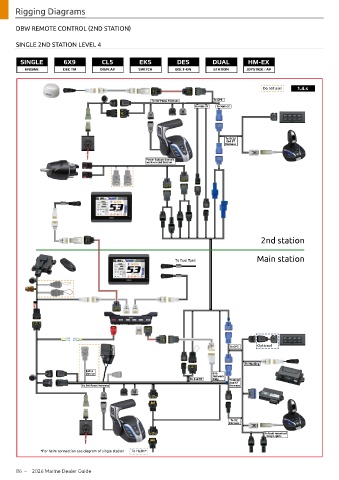

Rigging Diagrams

DBW REMOTE CONTROL (2ND STATION)

SINGLE 2ND STATION LEVEL 4

DES
DES
SINGLE 6X9 CL5 EKS DES DUAL HM-EX
BOLT-ON
ENGINE DEC TM DISPLAY SWITCH STEERING STATION JOYSTICK / AP
BOLT-ON
1.2.s
1.4.s
Do not use! 1.1.s
To SW Panel Harness To GPS
To Main ST To Main ST

To BCU/
2nd ST
Harness
To BCU/
2nd ST
Harness

Power button doesn’t
work on 2nd Station

2nd station

Main station
To Fuel Tank

To GPS Optional

To Heading
Extra
Device 6Y9
Network
To 2nd ST Only To BCU/
2nd ST
To SW Panel Harness Harness

To RC
Harness
To boat mounted
Prop Lights
*For helm connection see diagram of single station T To Engine
*
o Helm
