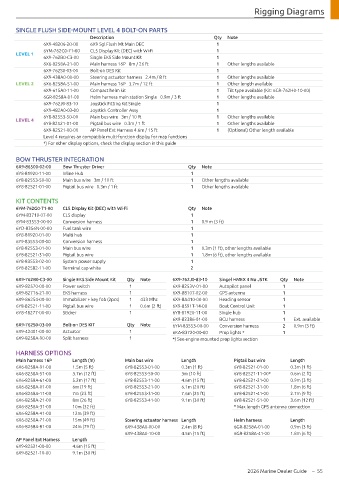

Page 57 - Yamaha Marine Zubehoer 2026

Rigging Diagrams

SINGLE FLUSH SIDE-MOUNT LEVEL 4 BOLT-ON PARTS
Description Qty Note
6X9-48206-20-00 6X9 Sgl Flush Mt Main DEC 1
6YM-762G0-71-00 CL5 Display Kit (DEC) with Wi-Fi 1
LEVEL 1
6X9-762B0-C3-00 Single EKS Side Mount Kit 1
6X6-8258A-21-00 Main harness 16P 8m / 26 ft 1 Other lengths available
6X9-762S0-03-00 Bolt-on DES Kit 1
6X9-438A0-00-00 Steering actuator harness 2.4m / 8 ft 1 Other lengths available
LEVEL 2 6X6-8258A-51-00 Main harness 16P 3.7m / 12 ft 1 Other length available
6X9-615A0-11-00 Compact helm kit 1 Tilt type available (Kit: 6GR-762H0-10-00)
6GR-8258A-01-00 Helm harness main station Single 0.9m / 3 ft 1 Other lengths available
6X9-762J0-83-10 Joystick Fitting Kit Single 1
6X9-482A0-03-00 Joystick Controller Assy 1
6Y8-82553-50-00 Main bus wire 3m / 10 ft 1 Other lengths available
LEVEL 4
6Y8-82521-01-00 Pigtail bus wire 0.3m / 1 ft 1 Other lengths available
6X9-82521-00-00 AP Panel Ext Harness 4.6m / 15 ft 1 (Optional) Other length available
Level 4 requires an compatible multi-function display for map functions
*) For other display options, check the display section in this guide

BOW THRUSTER INTEGRATION
6X9-86500-02-00 Bow Thruster Driver Qty Note
6Y8-81920-11-00 Inline Hub 1
6Y8-82553-50-00 Main bus wire 3m / 10 ft 1 Other lengths available
6Y8-82521-01-00 Pigtail bus wire 0.3m / 1 ft 1 Other lengths available

KIT CONTENTS
6YM-762G0-71-00 CL5 Display Kit (DEC) with Wi-Fi Qty Note
6YM-83710-07-00 CL5 display 1
6YM-83553-00-00 Conversion harness 1 0.9 m (3 ft)
6YD-8356N-00-00 Fuel tank wire 1
6Y8-81920-01-00 Multi hub 1
6Y9-83553-00-00 Conversion harness 1
6Y8-82553-01-00 Main bus wire 1 0.3m (1 ft), other lengths available
6Y8-82521-31-00 Pigtail bus wire 1 1.8m (6 ft), other lengths available
6Y8-83553-02-00 System power supply 1
6Y8-82582-11-00 Terminal cap white 2

6X9-762B0-C3-00 Single EKS Side Mount Kit Qty Note 6X9-762J0-83-10 Singel HMEX 4 No JSTK Qty Note
6X9-82570-00-00 Power switch 1 6X9-8253V-01-00 Autopilot panel 1
6X9-82716-21-00 EKS harness 1 6X9-88107-02-00 GPS antenna 1
6X9-86254-00-00 Immobilizer + key fob (2pcs) 1 433 Mhz 6X9-8A410-00-00 Heading sensor 1
6Y8-82521-11-00 Pigtail bus wire 1 0.6m (2 ft) 6X9-8591T-14-00 Boat Control Unit 1
6Y8-48277-00-00 Sticker 1 6Y8-81920-11-00 Single hub 1
6X9-82386-01-00 BCU harness 1 Ext. available
6X9-762S0-03-00 Bolt-on DES KIT Qty Note 6YM-83553-00-00 Conversion harness 2 0.9m (3 ft)
6X9-42401-00-00 Actuator 1 6KA-83720-00-00 Prop lights * 1
6X9-8258A-90-00 Split harness 1 *) See engine mounted prop lights section
HARNESS OPTIONS
Main harness 16P Length (m) Main bus wire Length Pigtail bus wire Length
6X6-8258A-91-00 1.5m (5 ft) 6Y8-82553-01-00 0.3m (1 ft) 6Y8-82521-01-00 0.3m (1 ft)
6X6-8258A-51-00 3.7m (12 ft) 6Y8-82553-50-00 3m (10 ft) 6Y8-82521-11-00* 0.6m (2 ft)
6X6-8258A-61-00 5.2m (17 ft) 6Y8-82553-11-00 4.6m (15 ft) 6Y8-82521-21-00 0.9m (3 ft)
6X6-8258A-01-00 6m (19 ft) 6Y8-82553-21-00 6.1m (20 ft) 6Y8-82521-31-00 1.8m (6 ft)
6X6-8258A-11-00 7m (23 ft) 6Y8-82553-31-00 7.6m (25 ft) 6Y8-82521-41-00 2.7m (9 ft)
6X6-8258A-21-00 8m (26 ft) 6Y8-82553-41-00 9.1m (30 ft) 6Y8-82521-51-00 3.6m (12 ft)
6X6-8258A-31-00 10m (32 ft) * Max length GPS antenna connection
6X6-8258A-41-00 12m (39 ft)
6X6-8258A-71-00 15m (49 ft) Steering actuator harness Length Helm harness Length
6X6-8258A-81-00 24m (79 ft) 6X9-438A0-00-00 2.4m (8 ft) 6GR-8258A-01-00 0.9m (3 ft)
6X9-438A0-10-00 4.5m (15 ft) 6GR-8258A-41-00 1.8m (6 ft)
AP Panel Ext Harness Length
6X9-82521-00-00 4.6m (15 ft)
6X9-82521-10-00 9.1m (30 ft)
