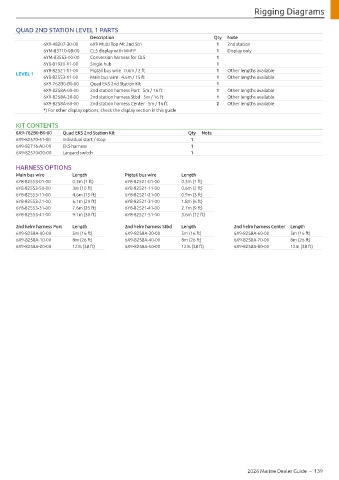

Rigging Diagrams

QUAD 2ND STATION LEVEL 1 PARTS
Description Qty Note
6X9-48207-30-00 6X9 Multi Top Mt 2nd Stn 1 2nd station
6YM-83710-08-00 CL5 display with Wi-Fi* 1 Display only
6YM-83553-00-00 Conversion harness for CL5 1
6Y8-81920-11-00 Single hub 1
6Y8-82521-11-00 Pigtail bus wire 0.6m / 2 ft 1 Other lengths available
LEVEL 1
6Y8-82553-11-00 Main bus wire 4.6m / 15 ft 1 Other lengths available
6X9-762B0-B0-00 Quad EKS 2nd Station Kit 1
6X9-8258A-00-00 2nd station harness Port 5m / 16 ft 1 Other lengths available
6X9-8258A-30-00 2nd station harness Stbd 5m / 16 ft 1 Other lengths available
6X9-8258A-60-00 2nd station harness Center 5m / 16 ft 2 Other lengths available
*) For other display options, check the display section in this guide

KIT CONTENTS
6X9-762B0-B0-00 Quad EKS 2nd Station Kit Qty Note
6X9-82570-51-00 Individual start / stop 1
6X9-82716-A0-00 EKS harness 1
6X9-82570-D0-00 Lanyard switch 1

HARNESS OPTIONS
Main bus wire Length Pigtail bus wire Length
6Y8-82553-01-00 0.3m (1 ft) 6Y8-82521-01-00 0.3m (1 ft)
6Y8-82553-50-00 3m (10 ft) 6Y8-82521-11-00 0.6m (2 ft)
6Y8-82553-11-00 4.6m (15 ft) 6Y8-82521-21-00 0.9m (3 ft)
6Y8-82553-21-00 6.1m (20 ft) 6Y8-82521-31-00 1.8m (6 ft)
6Y8-82553-31-00 7.6m (25 ft) 6Y8-82521-41-00 2.7m (9 ft)
6Y8-82553-41-00 9.1m (30 ft) 6Y8-82521-51-00 3.6m (12 ft)

2nd helm harness Port Length 2nd helm harness Stbd Length 2nd helm harness Center Length
6X9-8258A-00-00 5m (16 ft) 6X9-8258A-30-00 5m (16 ft) 6X9-8258A-60-00 5m (16 ft)
6X9-8258A-10-00 8m (26 ft) 6X9-8258A-40-00 8m (26 ft) 6X9-8258A-70-00 8m (26 ft)
6X9-8258A-20-00 12m (38 ft) 6X9-8258A-50-00 12m (38 ft) 6X9-8258A-80-00 12m (38 ft)

2026 Marine Dealer Guide – 139
