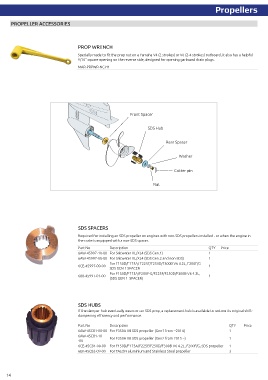

Page 16 - Yamaha Zubehör Aussenbordmotoren 2017

Propellers

PROPELLER ACCESSORIES

PROP WRENCH

Specially made to fit the prop nut on a Yamaha V4 (2 strokes) or V6 (2-4 strokes) outboard, it also has a helpful
9/16" square opening on the reverse side, designed for opening garboard drain plugs.
MAR-PRPWR-NC-H1

Front Spacer

SDS Hub

Rear Spacer

Washer

Cotter pin

Nut

Propeller 6EK_Damper system_02
SDS SPACERS
Required for installing an SDS propeller on engines with non-SDS propellers installed - or when the engine in
the crate is equipped with a non-SDS spacer.
Part No Description QTY Price
6AW-45997-10-00 For Saltwater XL/XL4 (SDS Gen.1) 1
6AW-45997-00-00 For Saltwater XL/XL4 (SDS Gen.2 and non-SDS) 1
For F150D/F175A/ F225F/F250D/F300B V6 4.2L, F200F/G
6CE-45997-00-00 1
SDS GEN 1 SPACER
For F150D/F175A/F200F-G/F225F/F250D/F300B V6 4.2L,
688-45997-01-00 1
(SDS GEN 1 SPACER)

SDS HUBS
If the damper hub eventually wears on an SDS prop, a replacement hub is available to restore its original shift-
dampening efficiency and performance.

Part No Description QTY Price
6AW-45C81-00-00 For F350A V8 SDS propeller (Gen1 from --2014) 1
6AW-45C81-10 For F350A V8 SDS propeller (Gen2 from 2015 --) 1
-00
6CE-45C81-00-00 For F150D/F175A/F225F/F250D/F300B V6 4.2L, F200F/G, SDS propeller 1
6EK-45C82-09-00 For TALON aluminium and Stainless Steal propeller 3
