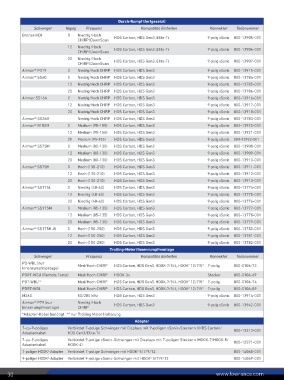

Page 30 - Lowrance Katalog 2018

Durch-Rumpf (fortgesetzt)
Schwinger Neigung Frequenz Kompatible Einheiten Konnektor Teilenummer
Bronze HDI 0 Niedrig/Hoch
CHIRP/DownScan HDS Carbon, HDS Gen3, Elite-Ti 9-polig xSonic 000-13905-001
12 Niedrig/Hoch HDS Carbon, HDS Gen3, Elite-Ti 9-polig xSonic 000-13906-001
CHIRP/DownScan
20 Niedrig/Hoch HDS Carbon, HDS Gen3, Elite-Ti 9-polig xSonic 000-13907-001
CHIRP/DownScan
Airmar® P319 0 Niedrig/Hoch CHIRP HDS Carbon, HDS Gen3 9-polig xSonic 000-13915-001
Airmar® SS60 0 Niedrig/Hoch CHIRP HDS Carbon, HDS Gen3 9-polig xSonic 000-13784-001
12 Niedrig/Hoch CHIRP HDS Carbon, HDS Gen3 9-polig xSonic 000-13785-001
20 Niedrig/Hoch CHIRP HDS Carbon, HDS Gen3 9-polig xSonic 000-13786-001
Airmar SS164 0 Niedrig/Hoch CHIRP HDS Carbon, HDS Gen3 9-polig xSonic 000-13916-001
12 Niedrig/Hoch CHIRP HDS Carbon, HDS Gen3 9-polig xSonic 000-13917-001
20 Niedrig/Hoch CHIRP HDS Carbon, HDS Gen3 9-polig xSonic 000-13918-001
Airmar® SS260 Niedrig/Hoch CHIRP HDS Carbon, HDS Gen3 9-polig xSonic 000-13783-001
Airmar® B150M 0 Medium (95-155) HDS Carbon, HDS Gen3 9-polig xSonic 000-13920-001
12 Medium (95-155) HDS Carbon, HDS Gen3 9-polig xSonic 000-13921-001
20 Medium (95-155) HDS Carbon, HDS Gen3 9-polig xSonic 000-13922-001
Airmar® SS75M 0 Medium (80-130) HDS Carbon, HDS Gen3 9-polig xSonic 000-13908-001
12 Medium (80-130) HDS Carbon, HDS Gen3 9-polig xSonic 000-13909-001
20 Medium (80-130) HDS Carbon, HDS Gen3 9-polig xSonic 000-13910-001
Airmar® SS75H 0 Hoch (130-210) HDS Carbon, HDS Gen3 9-polig xSonic 000-13911-001
12 Hoch (130-210) HDS Carbon, HDS Gen3 9-polig xSonic 000-13912-001
20 Hoch (130-210) HDS Carbon, HDS Gen3 9-polig xSonic 000-13913-001
Airmar® SS175L 0 Niedrig (40-60) HDS Carbon, HDS Gen3 9-polig xSonic 000-13774-001
12 Niedrig (40-60) HDS Carbon, HDS Gen3 9-polig xSonic 000-13775-001
20 Niedrig (40-60) HDS Carbon, HDS Gen3 9-polig xSonic 000-13776-001
Airmar® SS175M 0 Medium (85-135) HDS Carbon, HDS Gen3 9-polig xSonic 000-13777-001
12 Medium (85-135) HDS Carbon, HDS Gen3 9-polig xSonic 000-13778-001
20 Medium (85-135) HDS Carbon, HDS Gen3 9-polig xSonic 000-13779-001
Airmar® SS175H-W 0 Hoch (150-250) HDS Carbon, HDS Gen3 9-polig xSonic 000-13780-001
12 Hoch (150-250) HDS Carbon, HDS Gen3 9-polig xSonic 000-13781-001
20 Hoch (150-250) HDS Carbon, HDS Gen3 9-polig xSonic 000-13782-001
Trolling-Motor/Innenrumpfmontage
Schwinger Frequenz Kompatible Einheiten Konnektor Teilenummer
PD-WBL (nur Med/Hoch CHIRP HDS Carbon, HDS Gen3, HOOK-7/5/4, HOOK 12/7/5* 7-polig 000-0106-73
2
Innenrumpfmontage)
PDRT-WSU (Remote Temp) Med/Hoch CHIRP HOOK-3x Stecker 000-0106-69
PDT-WBL** Med/Hoch CHIRP HDS Carbon, HDS Gen3, HOOK-7/5/4, HOOK 12/7/5* 7-polig 000-0106-74
2
PDRT-WBL Med/Hoch CHIRP HDS Carbon, HDS Gen3, HOOK-7/5/4, HOOK 12/7/5* 7-polig 000-0106-89
2
M260 50/200 kHz HDS Carbon, HDS Gen3 9-polig xSonic 000-13914-001
Airmar® P79 (nur Niedrig/Hoch HDS Carbon, HDS Gen3 9-polig xSonic 000-13942-001
Innenrumpfmontage) CHIRP
*Adapter-Kabel benötigt ** nur Trolling Motor Halterung
Adapter
7-zu-9-poliges Verbindet 7-polige Schwinger mit Displays mit 9-poligen xSonic-Steckern ((HDS Carbon/ 000-13313-001
Adapterkabel HDS Gen3/Elite-Ti)
7-zu-9-poliges Verbindet 9-polige xSonic-Schwinger mit Displays mit 7-poligen Steckern (HOOK-7/HOOK-5/ 000-12571-001
Adapterkabel HOOK-4)
7-poliger HOOK -Adapter Verbindet 7-polige Schwinger mit HOOK 5/7/9/12 000-14068-001
2
2
9-poliger HOOK -Adapter Verbindet 9-polige xSonic-Schwinger mit HOOK 5/7/9/12 000-14069-001
2
2
