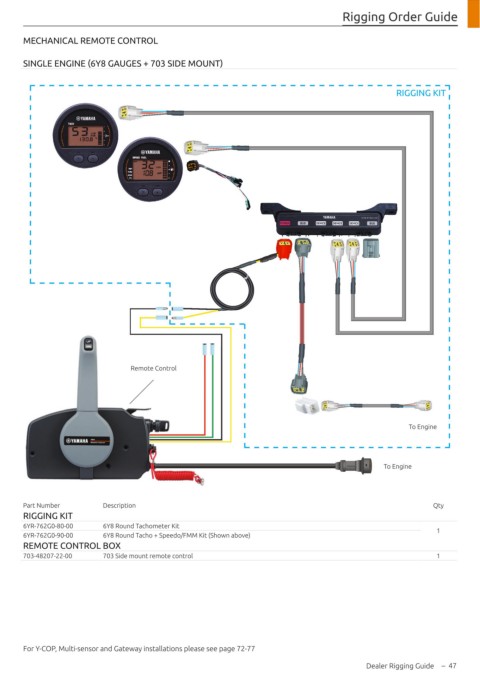

Rigging Order Guide


       MECHANICAL REMOTE CONTROL


       SINGLE ENGINE (6Y8 GAUGES + 703 SIDE MOUNT)



                                                                                                   RIGGING KIT











             6Y8-8350T-11-00
                                               6Y8-8356N-01-00
                                                                                   6Y8-81920-01-00
                            6Y8-83500-11-00



                                                          6Y8-83553-01-00



                                                                                             6Y8-85371-01-00












                                 Remote Control
                                    703-48207-1A-10





                                                                  6Y8-81920-11-00
                                                                                                      To Engine




                                                                                                To Engine




       Part Number        Description                                                                        Qty
       RIGGING KIT
       6YR-762G0-80-00    6Y8 Round Tachometer Kit                                                           1
       6YR-762G0-90-00    6Y8 Round Tacho + Speedo/FMM Kit (Shown above)
       REMOTE CONTROL BOX
       703-48207-22-00    703 Side mount remote control                                                      1












       For Y-COP, Multi-sensor and Gateway installations please see page 72-77
