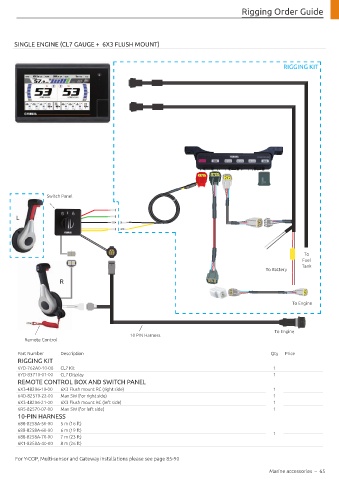

Rigging Order Guide

MECHANICAL REMOTE CONTROL

SINGLE ENGINE (CL7 GAUGE + 6X3 FLUSH MOUNT)

RIGGING KIT

Switch Panel

L

To
Fuel
Tank
To Battery
R

To Engine

To Engine
10 PIN Harness
Remote Control

Part Number Description Qty Price
RIGGING KIT
6YD-762A0-10-00 CL7 Kit 1
6YD-83710-01-00 CL7 Display 1
REMOTE CONTROL BOX AND SWITCH PANEL
6X3-48206-10-00 6X3 Flush mount RC (right side) 1
64D-82570-22-00 Man SW (for right side) 1
6X3-48206-21-00 6X3 Flush mount RC (left side) 1
6R5-82570-07-00 Man SW (for left side) 1
10-PIN HARNESS
688-8258A-50-00 5 m (16 ft)
688-8258A-60-00 6 m (19 ft) 1
688-8258A-70-00 7 m (23 ft)
6K1-8258A-40-00 8 m (26 ft)

For Y-COP, Multi-sensor and Gateway installations please see page 85-90
