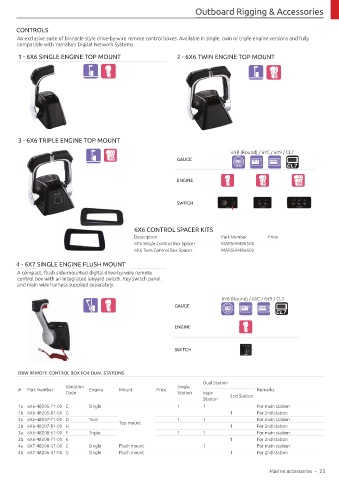

Page 25 - Yamaha Marine Marine Zubehör 2019

Outboard Rigging & Accessories

CONTROLS
An exclusive suite of binnacle style drive-by-wire remote control boxes. Available in single, twin or triple engine versions and fully
compatible with Yamaha’s Digital Network Systems.

1 - 6X6 SINGLE ENGINE TOP MOUNT 2 - 6X6 TWIN ENGINE TOP MOUNT

3 - 6X6 TRIPLE ENGINE TOP MOUNT

6Y8 (Round) / 6YC / 6Y9 / CL7
GAUGE
CL7

ENGINE

SWITCH

6X6 CONTROL SPACER KITS
Description Part Number Price
6X6 Single Control Box Spacer MARSHIM86500
6X6 Twin Control Box Spacer MARSHIM86600

4 - 6X7 SINGLE ENGINE FLUSH MOUNT
A compact, flush side-mounted digital drive-by-wire remote
control box with an integrated lanyard switch. Key switch panel
and main wire harness supplied separately.

6Y8 (Round) / 6YC / 6Y9 / CL7
GAUGE
CL7

ENGINE

SWITCH -

DBW REMOTE CONTROL BOX FOR DUAL STATIONS
Dual Station
Variation Single
# Part Number Engine Mount Price Remarks
Code Station Main
Station 2nd Station
1a 6X6-48205-71-00 C Single 1 1 For main station
1b 6X6-48205-81-00 G 1 For 2nd station
2a 6X6-48207-71-00 D Twin Top mount 1 1 For main station
2b 6X6-48207-81-00 H 1 For 2nd station
3a 6X6-48208-61-00 F Triple 1 1 For main station
3b 6X6-48208-71-00 K 1 For 2nd station
4a 6X7-48206-31-00 C Single Flush mount 1 For main station
4b 6X7-48206-41-00 G Single Flush mount 1 For 2nd station

Marine accessories – 23
