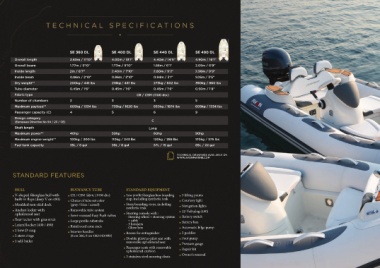

SE 360 DL SE 400 DL SE 440 DL SE 490 DL
Overall length 3.60m / 11’10” 4.00m / 13’1” 4.40m / 14’5” 4.90m / 16’1”
Overall beam 1.77m / 5’10” 1.77m / 5’10” 1.86m / 6’1” 2.05m / 6’9”
Inside length 2m / 6’7” 2.40m / 7’10” 2.80m / 9’2” 2.98m / 9’9”
Inside beam 0.86m / 2’10” 0.86m / 2’10” 0.94m / 3’1” 1.05m / 3’5”
Dry weight** 200kg / 441 lbs 218kg / 481 lbs 273kg / 602 lbs 390kg / 860 lbs
Tube diameter 0.45m / 1’6” 0.45m / 1’6” 0.45m / 1’6” 0.50m / 1’8”
Fabric type CR / CSM (1100 dtx)
Number of chambers 3 3 3 5
Maximum payload** 605kg / 1334 lbs 735kg / 1620 lbs 850kg / 1874 lbs 605kg / 1334 lbs
Passenger capacity (C) 4 5 6 9
Design category
(European Directive No 94 / 25 / CE) C
Shaft length Long
Maximum power** 40hp 50hp 60hp 90hp
Maximum engine weight** 100kg / 200 lbs 110kg / 243 lbs 120kg / 265 lbs 170kg / 375 lbs
Fuel tank capacity 35L / 8 gal 35L / 8 gal 57L / 15 gal 85L / 22 gal
TECHNICAL DRAWINGS AVAILABLE ON
WWW.AVONMARINE.COM
STANDARD FEATURES
HULL BUOYANCY TUBE STANDARD EQUIPMENT
V-shaped fi berglass hull with CR / CSM fabric (1100 dtx) Low profi le fi berglass bow boarding 3 lift ing points
built-in fl aps (deep V on 490) Choice of tube set color step, including synthetic teak Courtesy light
Moulded non-skid deck (grey / blue / camel) Stern boarding steps, including Navigation lights
Anchor locker with Removable tube system synthetic teak 12-Volt plug (490)
upholstered seat Semi-recessed Easy Push valves Steering console with : Battery switch
- Steering wheel + steering system
Rear locker with gras strut Large profi le rubstrake + cable Battery box
Lateral locker (400 / 490) Reinfroced cone ends - 3 breakers Automatic bilge pump
- Glove box
1 bow D-ring Interior handles Recess for extinguisher 2 paddles
2 stern rings (6 on 360, 8 on 400/440/490) Double pilot/co-pilot seat with Foot pump
1 self-bailer removable upholstered seat Pressure gauge
Passenger seats with removable Repair kit
upholstered cushion
3 stainless steel mooring cleats Owner’s manual
